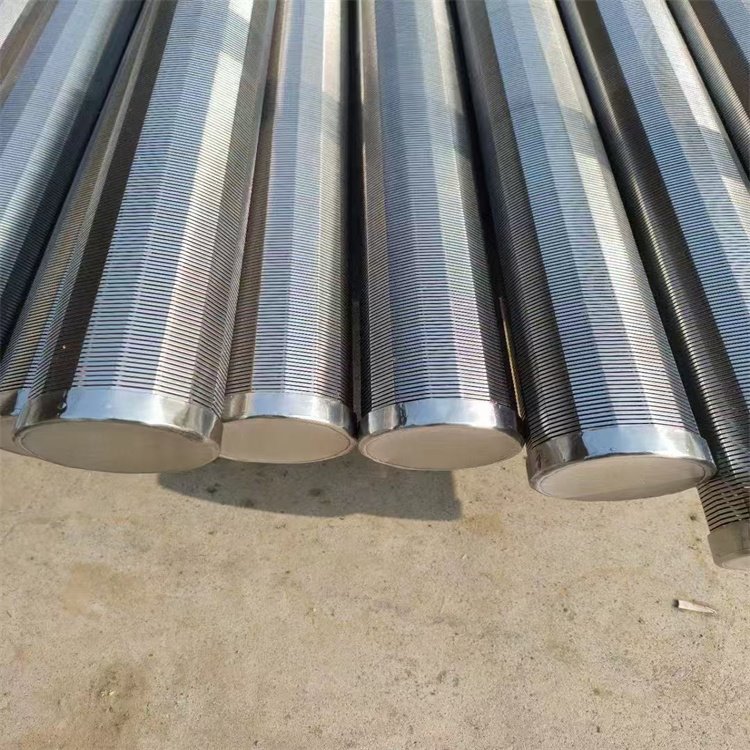

Stainless steel well screen is a slotted screen pipe installed inside groundwater wells and water intake projects. It lets water enter the well while blocking sand, gravel, and loose formation material. The screen body is usually made with V-shaped wire and support rods, so the slot opening stays controlled and the pipe can keep stable flow during pumping.
Product Parameters
|
Parameter |
Details |
|
Material |
304, 316, 316L stainless steel |
|
Screen type |
Wedge wire wrapped screen or customized screen tube |
|
Slot width |
Customized according to sand control need |
|
Diameter |
Customized well screen diameter |
|
Length |
Customized single length or sectional length |
|
Connection |
Thread, plain end, flange, or welded ring |
|
Application |
Groundwater well, drainage well, irrigation well, and water intake |
Project Use and Checking Points
Good for water wells, irrigation wells, drainage wells, and groundwater intake systems where sand control is needed.
Slot width, outside diameter, length, end connection, and straightness should be checked before delivery.
Welding points, support rods, packing protection, and size marks should be checked so each screen pipe is easy to identify on site.
FAQ
Q: How is the slot size selected?
A: It is usually selected based on sand size, water flow demand, and local well design.
Q: Can the ends be threaded?
A: Yes. Threaded ends, plain ends, rings, and flanges can be made according to the project need.
Q: Why use this screen in water wells?
A: It helps control sand entry, keeps water flow open, and gives better corrosion resistance in wet ground.
